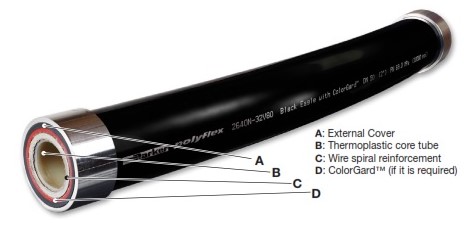

Illustration Photo 2" Black Eagle Hose

Informasjon

Polyflex Black Eagle Hose 2640N-32V80 (FSL-1)

Annuluslinjer for RWI (Riserless Well Intervention) og høytrykkslinjer i trykkpumpejobber som:

  • Brønn Injeksjon og Intervensjon (water, gas, chemicals)
  • Sementering - *2580N FSL-0 and FSL-1 Design
  • Syrevasking
  • Fracking
  • Mud pumping -*2580N FSL-0 and FSL-1 Design

*2580N-32V80 er DNVGL-godkjent i henhold til API7K-spesifikasjoner.
Mud & Cement FSL-0 med API-flens. FSL-1 med FIG 1502 Hammerlug (Hydrafit)

Features:

  • ColorGard™, an extra thick dual color
  • Polyurethane sheath or PA11 core tube
  • Long continuous lengths up to 1,500 m without splicing (depending on hose type)
  • Superior chemical resistant core tube – either seamless PA11 or fluoropolymer based
  • Compact design – smaller OD than flexible pipe
  • Up to 30% weight reduction in comparison to R13 rubber hoses – more than 70% in comparison to flexible pipe
  • ID from 1 1/4” up to 3” – working pressure from 3,000 psi (207 bar) up to 15,000 psi
    (1035 bar) – temperature range from -40°C up to 100°C
  • Lower bend radius compared to composite hose

Benefits:

  • Increased safety – superior abrasion resistance in combination with a visual indication for damaged sheaths or core tubes.
  • Less connections – therefore less risk of leakage, less risk to workforce, less pressure drop and faster deployment
  • Long service life and less maintenance
  • Less effort for logistics due to increased hose capacity per reel
  • Easier handling and faster installation
  • Comprehensive range of hoses to cover most applications
  • Easier handling much better flexibility

UtvalgVerdi
ID NumberID

Tilleggsinformasjon:

Leveres også med FIG1502 Hammerlug i FSL-1 - Kontakt oss for mer info.

Illustrasjons bilde 2" Black Eagle Hose
